System 9000 – Load Plans and Design

We calculate the natural frequency and design the system specifically to that.

We assist you with all the technical support, calculations and optimisation of the system. We draw, cut, label, package and then deliver the system to you, all according to your needs.

Owing to the flexibility of the subfloor system, different loads in the same room can be placed on different damping element setups so as to achieve uniform deflection across the whole room.

What we need from you, our customer

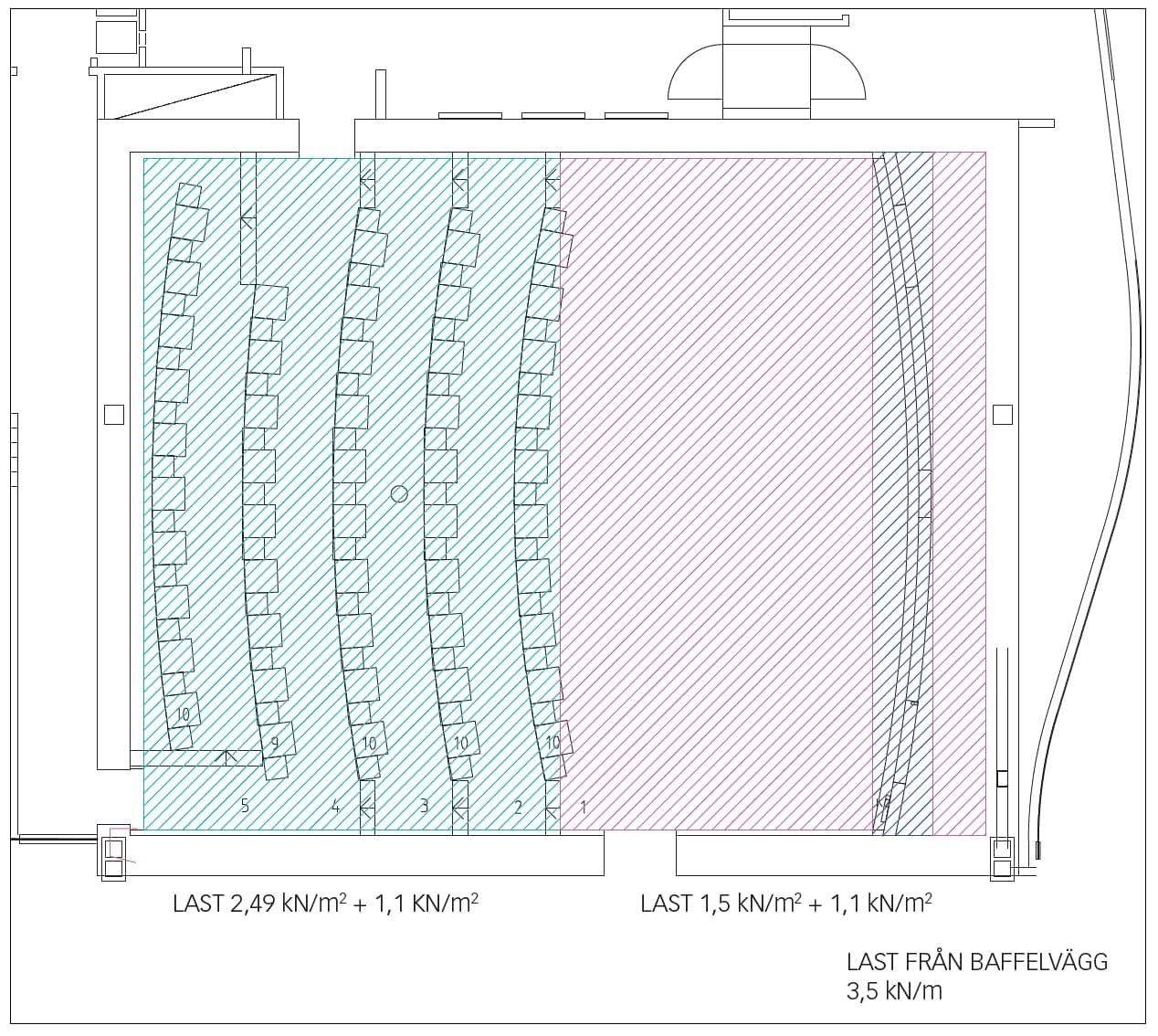

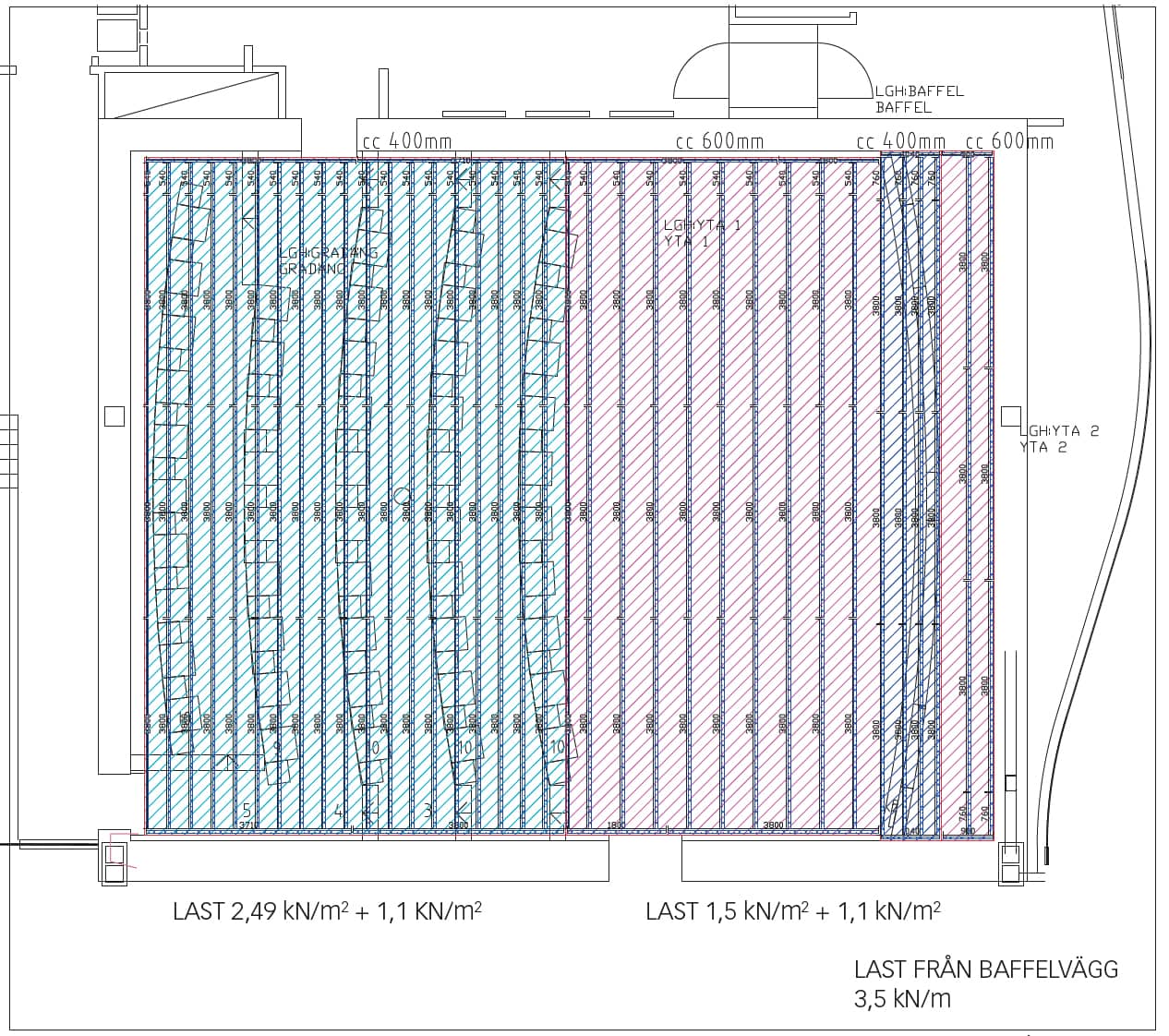

In a DWG file, draw in every unique load area above the upper floor, including the relevant loads. This enables us to draw in Granab Subfloor System 9000 at the correct place in the premises and to supply everything in the right dimensions and ready for installation.

Please include the following features in your drawing documentation:

  • Position of each load case in the premises, desired
    construction height, overlying floor joist.
  • Dead load kg/m2 floor constructions
  • Dynamic load kg/m2 on flor (additional load).

Read more about System 9000N:


Data for natural frequency, suspension and step sound improvement

Calculation example

Load Projection

Design of Sylodyn® Pads

Load Plans and Design
