Cinemas
Cinemas often have high requirements for structure-borne sound insulation. These requirements are easily met with the help of Granabs 9000N system, which enables 50mm dampening elements of the sylodyn. We design a customised system that takes both load requirements and natural frequency into account.
Commonly used systems in cinemas
Granab in other Sound & Event Halls
S-9000N
A commonly used system in cinemas is the S-9000N which is the system used for extreme sound requirements.

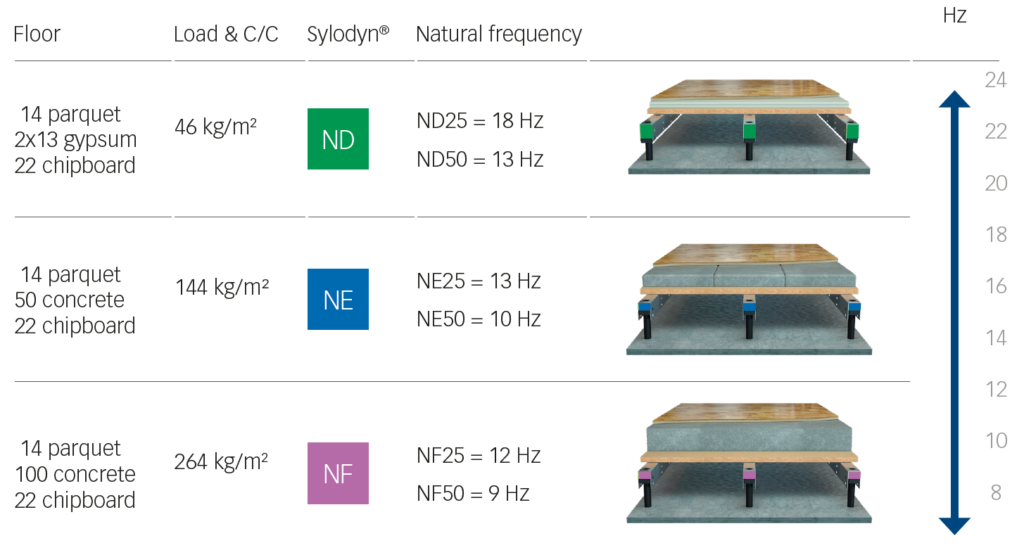

Examples of floor constructions with S-9000N
Granabs unique dampening element of sylodyn allow us to design a customised system that effectively takes into account both load requirements and natural frequency. The Granab system is particularly well suited to cinemas where there are high requirements for structure-borne sound insulation.
With a relatively heavy floor structure above Granab, a low natural frequency can be achieved and capacity for additional load is obtained. If the additional load is very high in relation to the dead weight of the floor, the set-up frequency in an empty room may be more difficult to bring down to the desired frequency. In this case, a heavier upper floor may be the solution.

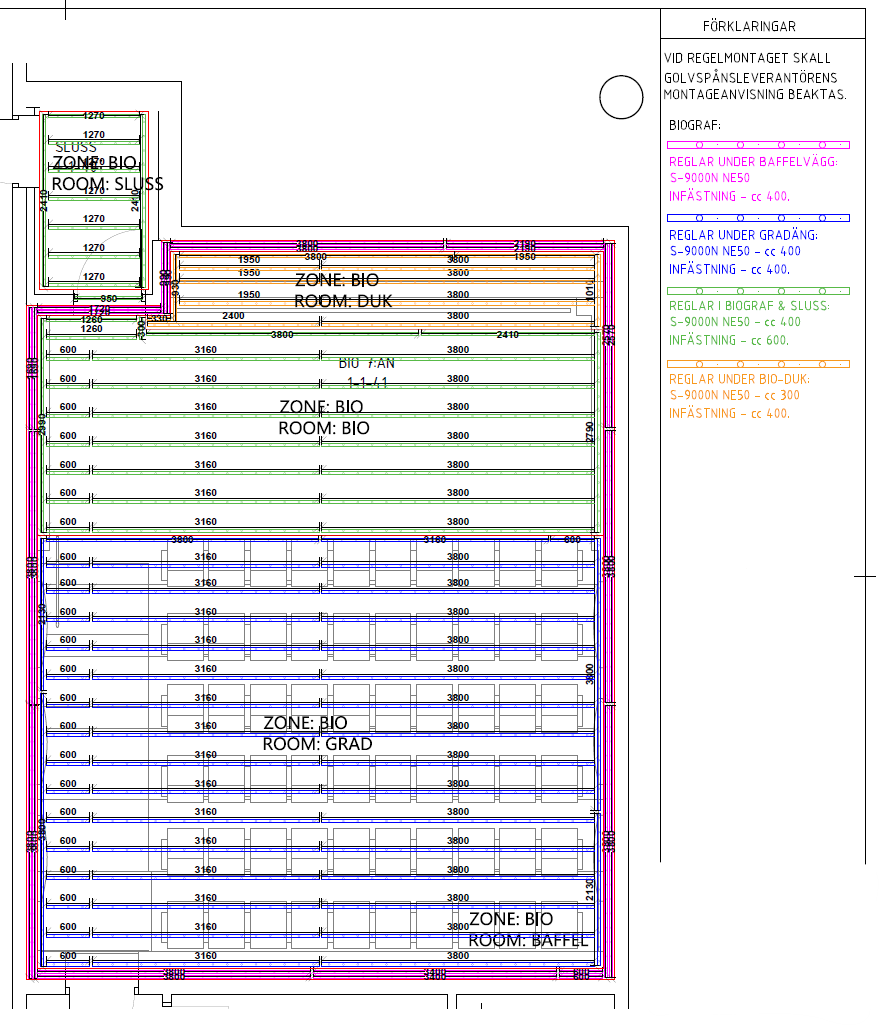

Drawing of granab in a cinema with baffle walls
- In cinemas, different designs of systems are often needed depending on whether there are heavy seatings, baffle walls or other additional loads, which makes Granabsystem S-9000N flexible.
Granabsystem S-9000N is installed dry and quickly without casted subfloors, which means that you avoid long drying times.
Granab helps you with all technical support, calculation and optimisation of the system.
Quick facts about Granab in cinemas
Cinemas often need different system designs depending on whether there are heavy seatings, baffle walls or other additional loads, which makes the flexibility of Granab System S-9000N unbeatable.
The S-9000N allows the possibility of both 25mm and 50mm sylodyn, which is often suitable for rooms with high acoustic requirements.
The threaded adjusting screw in combination with the threaded block in the Granab system enables height adjustment.
Granab has different standard lengths of adjustment screws to suit your particular project.
Granab S-9000N is the system used in rooms with extreme sound requirements. This is because the system allows the use of 50mm sylodyn as a damping element.
Depending on whether the system is installed on concrete or CLT flooring, or whether the system is to be removable, Granab supplies either concrete anchors, concrete screws or mounting screws.
Granab in cinemas
Environmental certification
Granab works actively to reduce environmental impact and has certifications that confirm our commitment to sustainability. All our subfloor systems have Environmentally Product Declarations (EPD).
